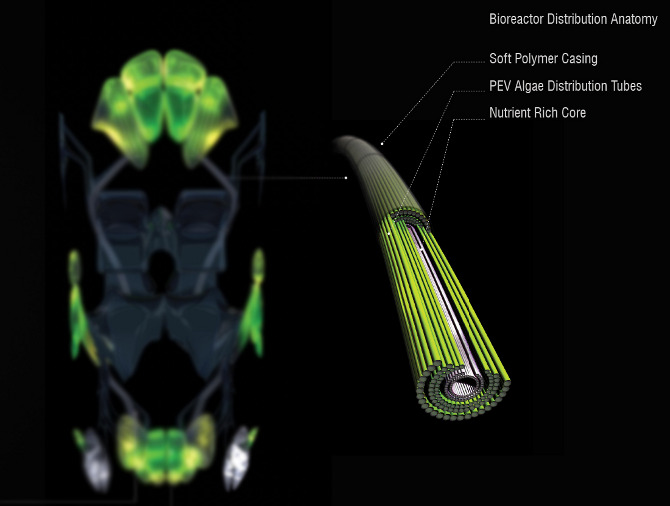

Generates a series of bioReactor distribution tubes based on an input curve - Emergent Semi Rigid Car Python Research V.1 [29.June.2011] - via Python + Rhinoscript
""" The input is a base curve, density and number of layers can be controlled in the code."""
click images for full resolution





Python Version

import rhinoscriptsyntax as rs

from System.Drawing import Color

"""Script Written By Luis Quinones

Script Copywritten by [n]igma + studioBoom + computationalMatter

www.luisquinonesdesign.com

www.computationalmatter.com

www.cargocollective.com/studioboom

Script Version Wednesday, June 29, 2011"""



def Pipes(crv,dblRad,k):

    rs.SelectObject(crv)

    rs.Command("Pipe " +str(dblRad)+" "+str(dblRad)+ " enter")

    rs.Command("Selnone")



def Main():

    strCrv = rs.GetObject("CRV",rs.filter.curve)

    strLayer = rs.AddLayer("CONSTRUCTION")

    strLayer2 = rs.AddLayer("Plines", Color.White)

    strLayer3 = rs.AddLayer("Pipes", Color.White)

    div = rs.DivideCurve(strCrv,30,True)

    #ptTrans = []

    rs.EnableRedraw(False)

    for y in range(5):

        print y

        for z in range(36):

            ptTrans = []

            for i in range(len(div)):

                if div:

                    param = rs.CurveClosestPoint(strCrv,div[i])

                    arrData = rs.CurveCurvature(strCrv,param)

                    if arrData:

                        tangent = arrData[1]

                        arrEnd = [div[i][0] + tangent[0],div[i][1] + tangent[1],div[i][2] + tangent[2]]

                        curvature = arrData[4]

                        #if curvature[0] > 0:

                        #curvature[0] = curvature[0] * -1

                        #curvature[1] = curvature[1] * -1

                        #curvature[2] = curvature[2] * -1

                        arrEnd2 = [div[i][0] + curvature[0],div[i][1] + curvature[1],div[i][2] + curvature[2]]

                        rs.AddPoint(arrEnd2)

                        vec = rs.VectorCreate(arrEnd,div[i])

                        vec2 = rs.VectorCreate(arrEnd2,div[i])

                        scaledVec = rs.VectorUnitize(vec2)

                        scale = 0.5

                        if y > 0 and y < 2:

                            scale = (0.5/y)*0.75

                        if y >= 2:

                            scale = (0.5/y)*1.25

                        vec2A = rs.VectorScale(scaledVec,scale)

                        vec22 = rs.VectorAdd(vec2A,div[i])

                        check = rs.IsVectorPerpendicularTo(vec,vec2A)

                        vec3 = rs.VectorCrossProduct(vec,vec2A)

                        newVec = rs.PointAdd(div[i],vec3)

                        rs.AddPoint(newVec)

                        rotVec = rs.VectorCreate(div[i],newVec)

                        newLine2 = rs.AddLine(vec22,div[i])

                        rs.ObjectLayer(newLine2,strLayer)

                        newLine = rs.RotateObject(newLine2,div[i],10*z,vec,True)

                        rs.ObjectLayer(newLine,strLayer)

                        ptTrans.append(rs.CurveStartPoint(newLine))

            pline = rs.AddPolyline(ptTrans)

            rs.RebuildCurve(pline,3,50)

            rs.ObjectLayer(pline,strLayer2)

            rs.LayerVisible(strLayer,False)

        crvTest = rs.ObjectsByLayer("Plines")

        print len(crvTest)

        arrStart = rs.CurveStartPoint(crvTest[0])

        arrStart2 = rs.CurveStartPoint(crvTest[1])

        newDist = rs.Distance(arrStart,arrStart2)

        dblRad = newDist * 0.5

    """

        for k in range(len(crvTest)):

            Pipes(crvTest[k],dblRad,k)

        delete = rs.ObjectsByLayer("Plines",True)

        rs.DeleteObjects(delete)"""

    rs.EnableRedraw(True)

Main()

{image 3}
Rhinoscript Version

Option Explicit

'Script written by Luis Quinones

'Script copyrighted by [n]igma + studioBoom + computationalMatter

'www.luisquinonesdesign.com

'www.computationalmatter.com

'www.cargocollective.com/studioboom

'Script version Friday, June 10, 2011 6:07:17 PM



Call Main()

Sub Main()



	Dim strCrv : strCrv = Rhino.GetObject("CRV",4)

	Dim strLayer : strLayer = Rhino.AddLayer("Construction")

	Dim strLayer2 : strLayer2 = Rhino.AddLayer("Plines",RGB(255,255,255))

	Dim strLayer3 : strLayer3 = Rhino.AddLayer("Pipes",RGB(255,255,255))

	Dim div : div = Rhino.DivideCurve(strCrv,30,True)

	Dim i

	Dim ptTrans()

	Dim z

	Rhino.EnableRedraw False



	For z = 0 To 36

		For i = 0 To Ubound(div)

			If IsArray(div) Then

				Dim param : param = Rhino.CurveClosestPoint(strCrv,div(i))

				If IsNumeric(param) Then

					Dim arrData : arrData = Rhino.CurveCurvature(strCrv,param)

					If IsArray(arrData) Then

						Dim tangent : tangent = arrData(1)

						Dim arrEnd : arrEnd = array((div(i)(0)+tangent(0)),(div(i)(1)+tangent(1)),(div(i)(2)+tangent(2)))

						'Call Rhino.AddPoint(arrEnd)

						Dim curvature : curvature = arrData(4)

						'Rhino.Print(curvature(0))

						If curvature(0) > 0 Then

							curvature(0) = curvature(0) * -1

							curvature(1) = curvature(1) * -1

							curvature(2) = curvature(2) * -1

						End If

						Dim arrEnd2 : arrEnd2 = array((div(i)(0)+curvature(0)),(div(i)(1)+curvature(1)),(div(i)(2)+curvature(2)))

						'Call Rhino.AddPoint(arrEnd2)

						Dim vec : vec = Rhino.VectorCreate(arrEnd,div(i))

						Dim vec2 : vec2 = Rhino.VectorCreate(arrEnd2,div(i))

						Dim scaledVec : scaledVec = Rhino.VectorUnitize(vec2)

						Dim vec2A : vec2A = Rhino.VectorScale(scaledVec,2)

						Dim vec22 : vec22 = Rhino.VectorAdd(vec2A,div(i))

						Rhino.AddPoint vec22

						Dim check : check = Rhino.IsVectorPerpendicularTo(vec,vec2A)

						'Rhino.Print check

						Dim vec3 : vec3 = Rhino.VectorCrossProduct(vec,vec2A)

						Dim newvec : newvec = Rhino.PointAdd(div(i),vec3)

						'Call Rhino.VectorScale(newvec,3)

						Rhino.AddPoint(newvec)

						'Call Rhino.AddPoint(vec3)

						'Rhino.VectorRotate(vec2)

						Dim rotVec : rotVec = Rhino.VectorCreate(div(i),newvec)

						Dim newLine2 : newLine2 = Rhino.AddLine(vec22,div(i))

						Rhino.objectLayer newLine2,strLayer

						Dim newLine : newLine = Rhino.RotateObject(newLine2,div(i),10*z,vec,True)

						Rhino.objectLayer newLine,strLayer

						'Dim scaled : scaled = Rhino.ScaleObjects(newLine2,div(i),array(0.75,0.75,0.75),True)

						ReDim Preserve ptTrans(i)

						ptTrans(i) = Rhino.CurveStartPoint(newLine)

					End If

				End If

			End If

		Next

		Dim pline : pline = Rhino.AddPolyline(ptTrans)

		Call Rhino.ObjectLayer(pline,strLayer2)

		Erase ptTrans

	Next

	'Dim pline : pline = Rhino.AddPolyline(ptTrans)

	'Call Rhino.LayerVisible(strLayer,False)

	Dim crvTest : crvTest = Rhino.ObjectsByLayer("Plines")

	Dim arrStart : arrStart = Rhino.CurveStartPoint(crvTest(0))

	Dim arrStart2 : arrStart2 = Rhino.CurveStartPoint(crvTest(1))

	Dim newDist : newDist = Rhino.Distance(arrStart,arrStart2)

	Dim dblRad : dblRad = newDist *.4

	Dim k

	For k = 0 To Ubound(crvTest)

		Call AddPipe(crvTest(k),dblRad,k)

	Next

	Rhino.EnableRedraw True

End Sub



Function AddPipe(crv,dblRad,k)

	Dim strPipe

	Call Rhino.SelectObject (crv)

	Call Rhino.Command ("Pipe "&dblRad&" "&dblRad&" enter")

	strPipe = Rhino.LastObject

	Call Rhino.ObjectColor (strPipe, rgb(0,k,0))

	Call Rhino.Command ("Selnone ")

End Function
